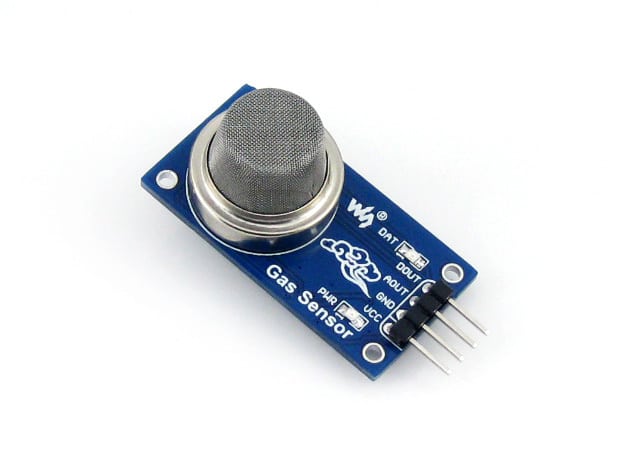

Features:
Uses a high-quality dual-panel design, with a power indicator and TTL signal output instructions.
The switching signal has a DO (TTL) output and analog output AO.
TTL output valid signal is low. ( Low-level signal when the output light can be directly connected to the microcontroller or relay module )
Analog output voltage with the higher concentration of higher voltage.
Gas, natural gas, city gas, smoke better sensitivity.
There are four screw holes for easy positioning.
It has a long life and reliable stability
Rapid response and recovery characteristic
Input voltage : DC5V Power consumption ( current ): 150mA
DO output: TTL digital 0 and 1 ( 0.1 and 5V)
AO output:0.1-0 .3 V ( relative to pollution ), the maximum concentration of a voltage of about 4V
Special note: After the sensor is powered, needs to warm up around 20S, The measured data was stable, and the heat sensor is a normal phenomenon, because the internal heating wire, if hot is not normal.
VCC: positive power supply (5V)
GND: power supply is negative
DO: TTL switching signal output
AO: analog signal output
