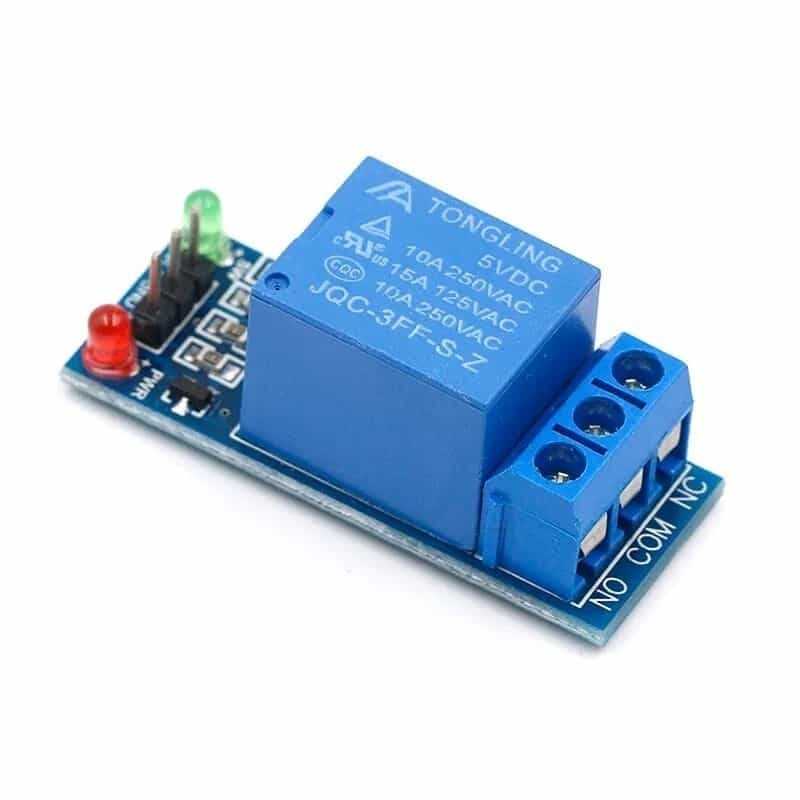

Product details of 1 Channel Module DC 5V Relay Board 1Channel Single Channel Trigger Relay Control Module
- Number of I/O Channels: 1
- DC 5v Relay Use
- Any Brand Relay Can Be use
- Switching capacity available by 10A in spite of small size design for high density P.C. board mounting technique.
- Control signal: TTL level
- Max. Allowable Voltage: 250VAC/110VDC
- Max. Allowable Power Force: From C(800VAC/240W), From A(1200VA/300W)
- UL,CUL,TUV recognized.
- Indication LED for Relay’s Status
- VCC: Power interface, V
- GND: Ground
- IN: Control interface .Drive Current at least 4mA
- COM: Control circuit ground ,Connect to GND
- Single Size: approx. 44 x 6 x 6mm
1 Channel 5V Relay Module 5V Relay 1 Channel Module 5V Relay Board 1CH Single Channel Trigger Relay Control Module With Screw Terminal Relay Switch DC 5V Relay Circuit
The Single Channel Relay Module is a convenient board which can be used to control high voltage, high current load such as motor, solenoid valves, lamps and AC load. It is designed to interface with micro-controller such as Arduino, PIC and etc. The relays terminal (COM, NO and NC) is being brought out with screw terminal. It also comes with a LED to indicate the status of relay. This is a Single Pole Double Throw (SPDT) Configuration relay.
